Handheld multi angle gloss meter showing readings at 20, 60 and 85 degrees in gloss units

Multi Angles Gloss Meter 20°, 60° and 85° read in a single pass

A handheld instrument that reports all three standard gloss geometries at once, in gloss units. One placement on the surface tells you how a finish behaves at a grazing angle, at the reference angle and at a steep one, which is the difference between a coating that looks even and one that does not.

Handheld 20° / 60° / 85° GU Manufacturer brand

Request a quotation Ask for the datasheet

20° 91.2 GU High gloss

60° 94.6 GU Reference geometry

85° 99.5 GU Matte and sheen

These are the values on the display of the unit we hold, taken from one sample. They show what the instrument reports, not what it is specified to do. Ranges and tolerances are in the datasheet.

The gloss level decides which geometry to read.

60° is the reference geometry for most finishes. On a very glossy surface that reading compresses towards the top of the scale and stops separating good from excellent, so high gloss is judged at 20°. On a matte surface the opposite happens and 85° does the work. Reading all three together means the operator never has to decide in advance which geometry the material calls for, and a disagreement between two angles is itself a finding.

Specification

Confirmed from the delivered unit. Measuring range, resolution, repeatability and the standard revisions the instrument is tested against are in the datasheet, which we send on request.

Geometries 20° / 60° / 85°

Reported in GU

Type Handheld gloss meter

Calibration By Onova, on your own cycle

Measurement

Geometries: 20°, 60° and 85°, measured together in one pass
Reported in: GU (gloss units)
On-instrument functions: Target, Sample, Save, Print and Exit, with a single measurement mode

Physical

Type: Handheld gloss meter
Display: Color screen showing all three angles at the same time

Supplied

In the box: Instrument, charger, USB cable, molded case
Brand: Manufacturer brand, supplied and supported by Onova Tech
Calibration: Calibration and verification by Onova on your own cycle

Ask for the datasheet

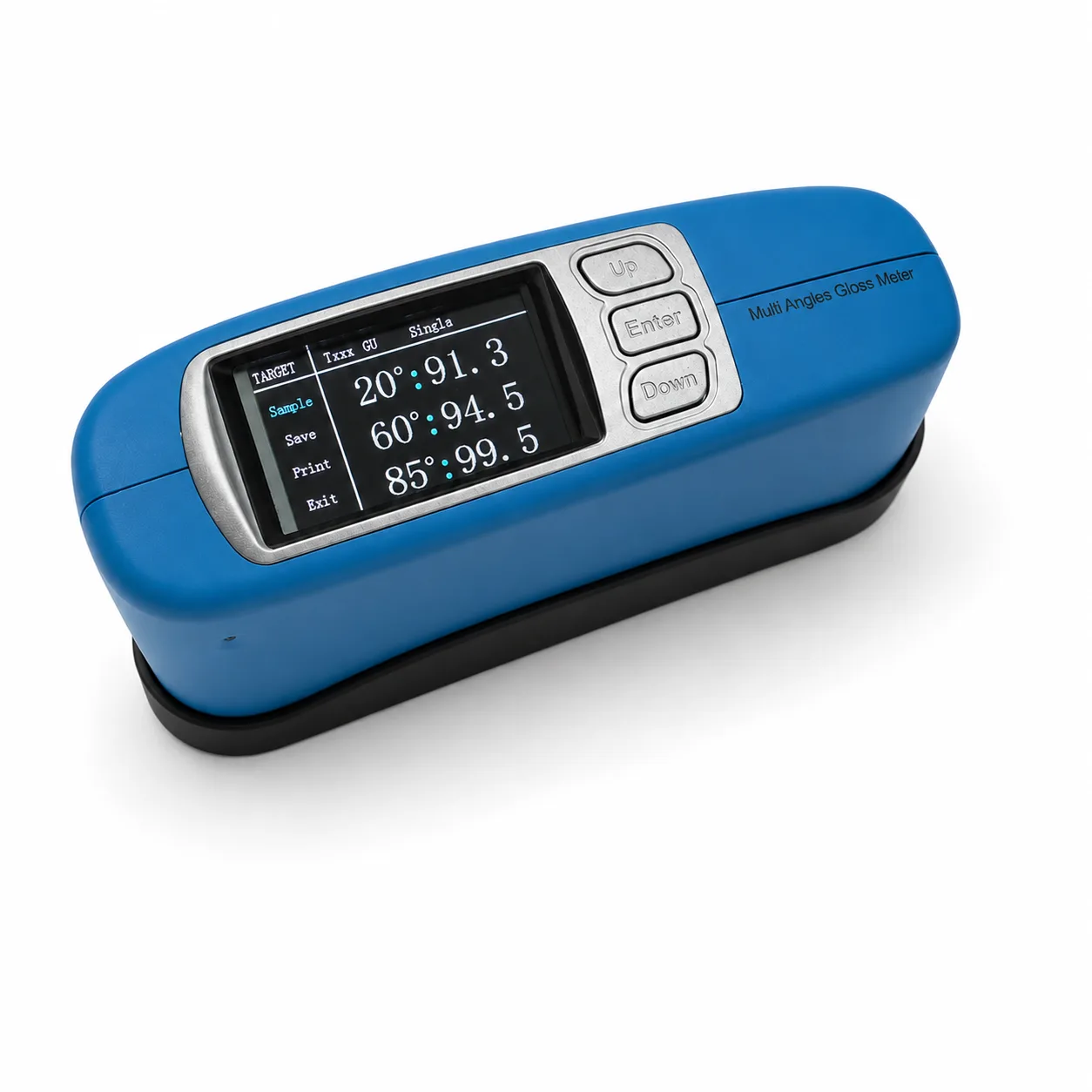

Gloss meter seen from the front with the three angle readings on screen — All three angles stay on screen together.

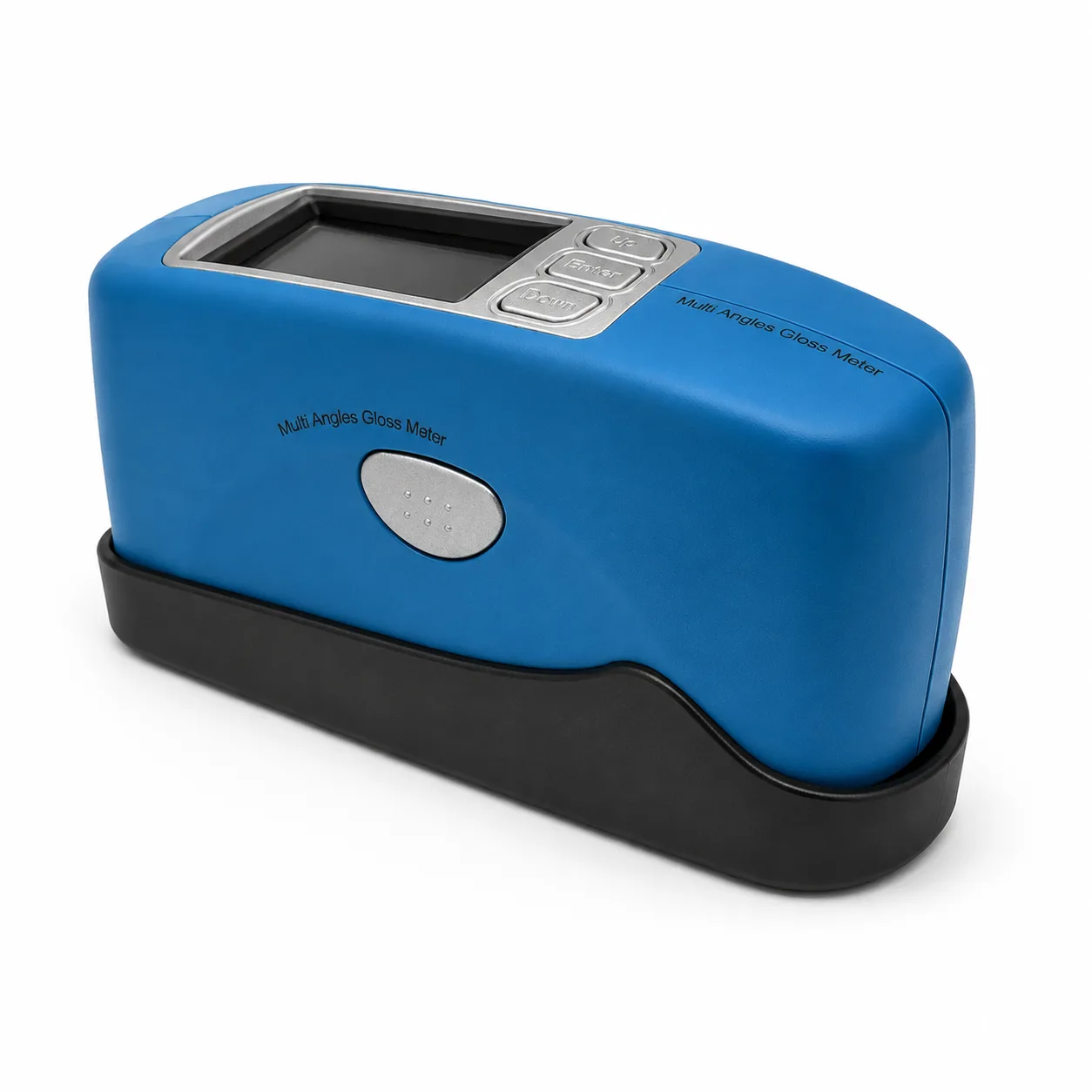

Rear of the gloss meter showing the measuring aperture and the seating base — The aperture seats flat on the sample.

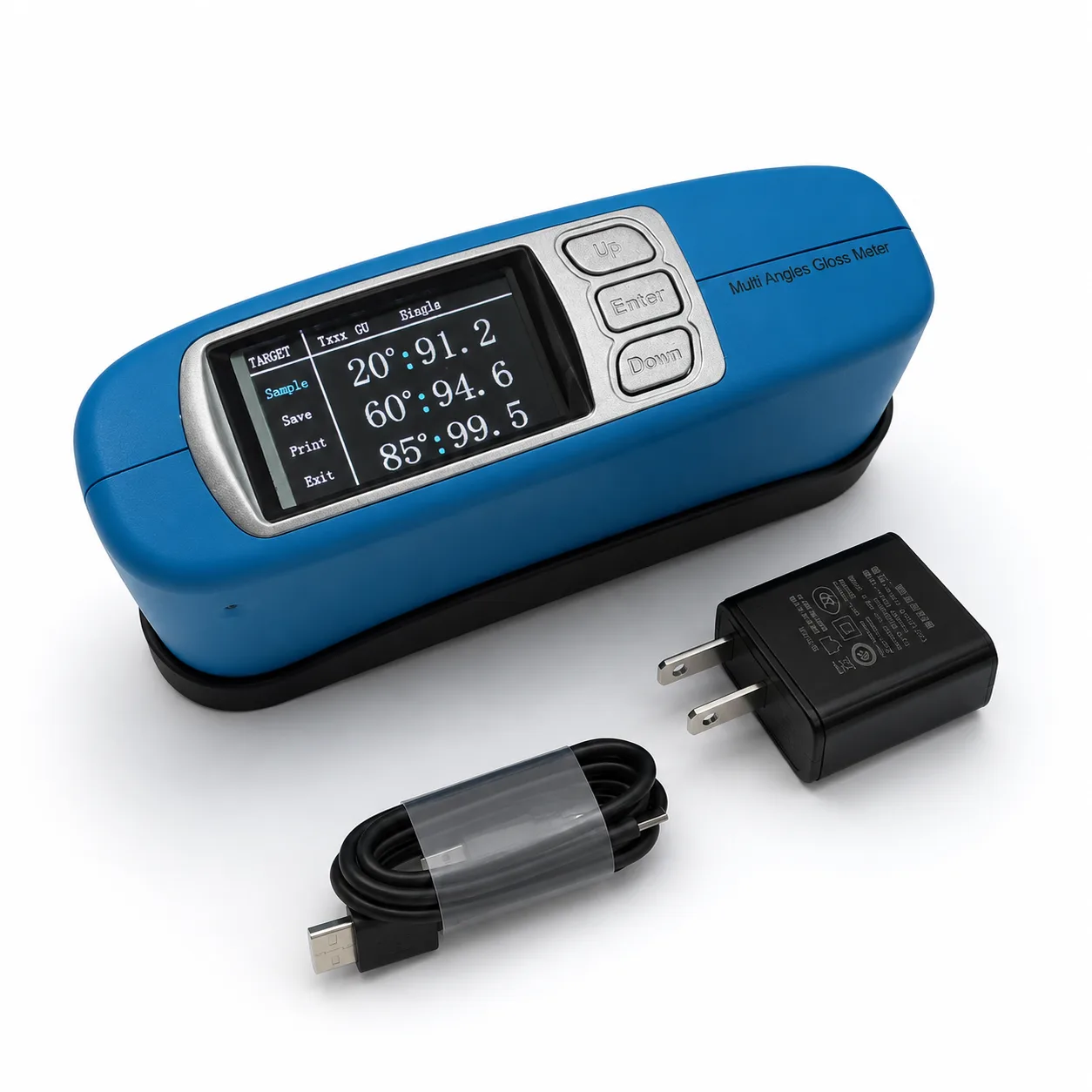

The gloss meter with its charger and USB cable — The charger and USB cable supplied with it.

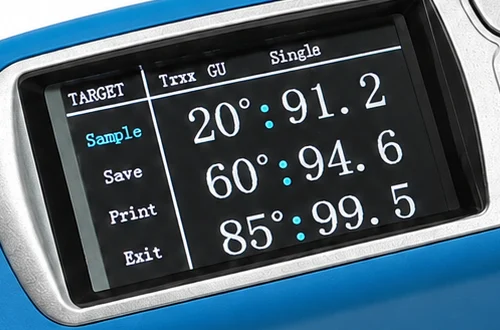

Close view of the display showing the 20, 60 and 85 degree readings together — All three angles on one screen, read in one pass.
