Color and Haze Meter Color, haze and transmittance of transparent materials, on one bench

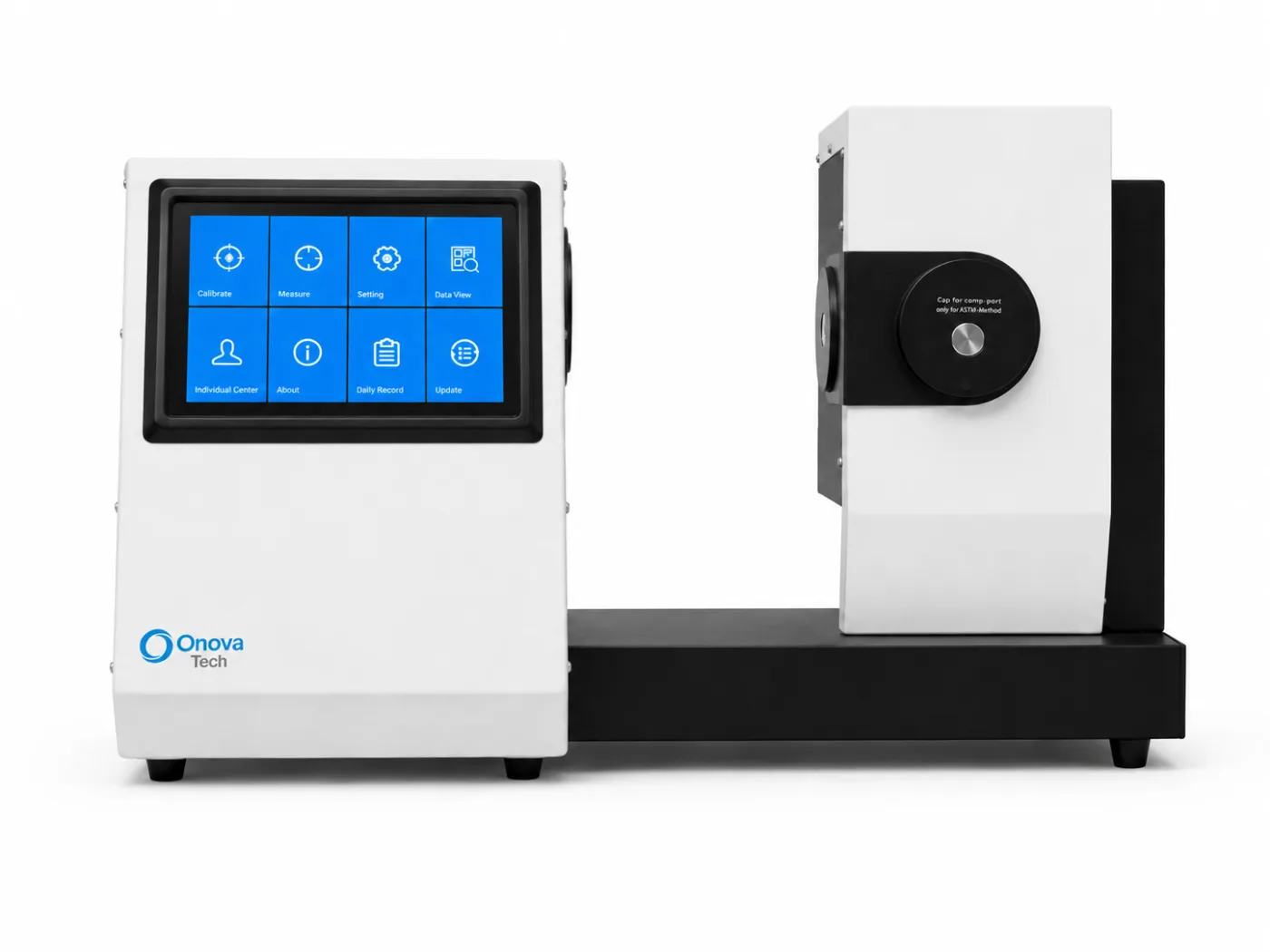

A benchtop instrument for transparent, translucent and parallel plane materials: plastic, film, glass and LCD panels. It reads haze, total and spectral transmittance and color through a 0/d integrating sphere, over 400 to 700 nm, and reports them on a 7 inch touchscreen. It carries the Onova Tech brand, ships with a Thai manual, and we calibrate it.
Everything the operator needs is on the instrument.

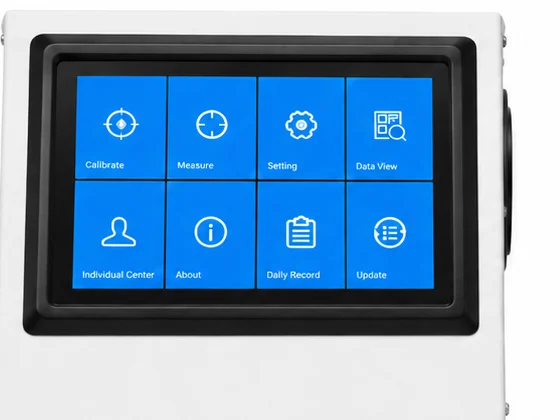

Calibrating at 0 percent and 100 percent, measuring, reviewing 20,000 stored readings and exporting them all happen on the unit's own 7 inch touchscreen, which runs Android. There is no laptop in the loop and nothing to install, which is what makes it usable by a production QC team and not only by a lab technician. Haze QC software for a PC comes with the instrument when you do want the data on a desk. These are the eight modules exactly as the home screen presents them.
The home screen of the unit as it ships. Labels are shown exactly as they appear on the instrument.
Specification
Taken from the instrument's own Thai manual, version 2022.1. Ask us for the manual and the datasheet before you commit to anything.
Optical
- Type
- Benchtop, integrating sphere, open sample area for any sample size
- Geometry
- 0/d
- Wavelength
- 400 to 700 nm, 10 nm interval
- Light source
- CIE A, C and D65 for haze and transmittance. A, C, D50, D55, D65, D75, F1 to F12, CMF, U30, DLF, NBF, TL83 and TL84 for chromaticity
- Standards
- ASTM D1003 / D1044, ISO 13468, ISO 14782, JIS K 7105 / 7361 / 7136, GB/T 2410-08, CIE No.15, ISO 7724/1, ASTM E1164, DIN 5033 Teil 7, JIS Z8722 condition c
Measurement
- Measures
- Haze, total light transmittance, spectral transmittance and color
- Materials
- Transparent, translucent and parallel plane materials: plastic, film, glass, LCD panels
- Reported values
- Haze, transmittance, spectral transmittance, CIE Lab, LCh, CIE Luv, XYZ, Yxy, Hunter Lab, Munsell, WI, YI, Tint, metamerism index, APHA, Pt-Co, Gardner, CMYK and the ΔE color difference family
- Repeatability
- Haze below 10 %: 0.05 % or better. Haze at 10 % and above: 0.1 % or better. Transmittance: 0.1 % or better
- Measuring area, sample port
- 16.5 mm, 21 mm
- Sample thickness
- Up to 145 mm
Physical
- Display and memory
- 7 inch capacitive touchscreen running Android, 20,000 stored readings
- Interface and power
- USB-A and USB-B, 220 V
- Operating conditions
- 5 to 40 °C, relative humidity up to 80 % at 35 °C, no condensation
- Size and weight
- 598 × 247 × 366 mm, 12 kg
Supplied
- Supplied with
- Haze QC software for PC, Thai language manual, Onova Tech brand
- Options
- Measuring fixture, haze standard plates, 5, 7 and 10 mm aperture plates, 40 × 10 cuvette
